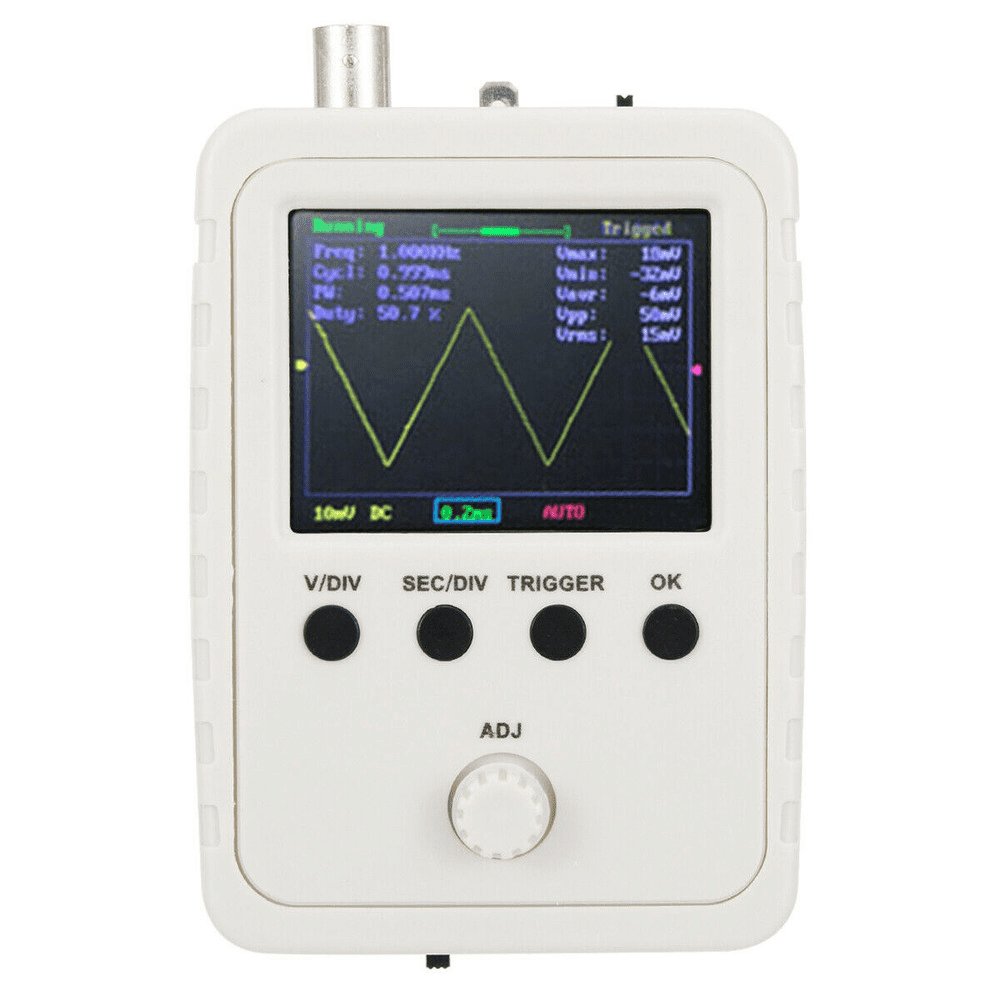

GUYUTING Replacement Fully Welded Digital Oscilloscope with 1KHz Test Signal Source Troubleshooting Capabilities for Technicians

<p><b>Features:</b><br>Adopts ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen<br>Has automatic, conventional and single trigger mode, convenient to capture the instantaneous waveform.<br>Digital displays waveform parameters, such as frequency, cycle, pulse width, duty cycle, maximum, minimum, average, peak value and effective value.<br>The trigger level position is adjustable.<br>Vertical displacement is adjustable.<br>With 1KHz / 3.3V square wave test signal source.<br>Save/tune out the waveform, the shutdown waveform does not disappear.<br>Fine workmanship and good performance.<br><br><b>Specifications:</b><br>Maximum real-time sampling rate: 1 MSa/s<br>Analog bandwidth: 0 - 200 KHz<br>Sensitivity range: 5 – 20 mV/div<br>Maximum input voltage: 50 Vpk (1X probe)<br>Input impedance: 1M ohms/20pF<br>Accuracy: 12 bits<br>Record length: 1024 points<br>Coupling modes: DC / AC / GND<br>Time Base Range: 500s/Div – 10us / Div<br>Trigger modes: Auto, normal, and single<br>Trigger position: Center of buffer<br>Supply voltage: DC 9V(8 – 10 V)<br>Current consumption: ~120 mA @ 9 V<br>Power supply: Recommend the 9V 1A power adapter, 5.5x2.1mm connector(not include)<br><br><b>Package includes:</b><br>1 x Fully Welded Assembled Digital Oscilloscope<br>1 x Alligator clip</p><br>

• With 1KHz / 3.3V square wave test signal source.
• Save/tune out the waveform, the shutdown waveform does not disappear.
• Fine workmanship and good performance.
